Flexible Cables
Flexible cables are used in auxiliary circuits & euipments, CCTV power supply, etc. Voltage range includes 300/500V. These cables are manufactured to BS & IEC standards.
Construction
- Annealed Plain Copper Conductor (Class 5)
- PVC or Heat Resistant PVC Insulation
- PVC or Heat Resistant PVC Sheath
Applicable Standards
- BS EN 50525-2-11 (previously BS 6500), IEC 60227-5
Operating Temperature
- 70°C for general purpose cables
- 90°C for heat resistant cables
Properties
- Flame retardant to IEC 60332-1
Type Tested By
- BSI
- KEMA
Application
- For household appliances under medium mechanical stress in damp & wet conditions.
Type Details

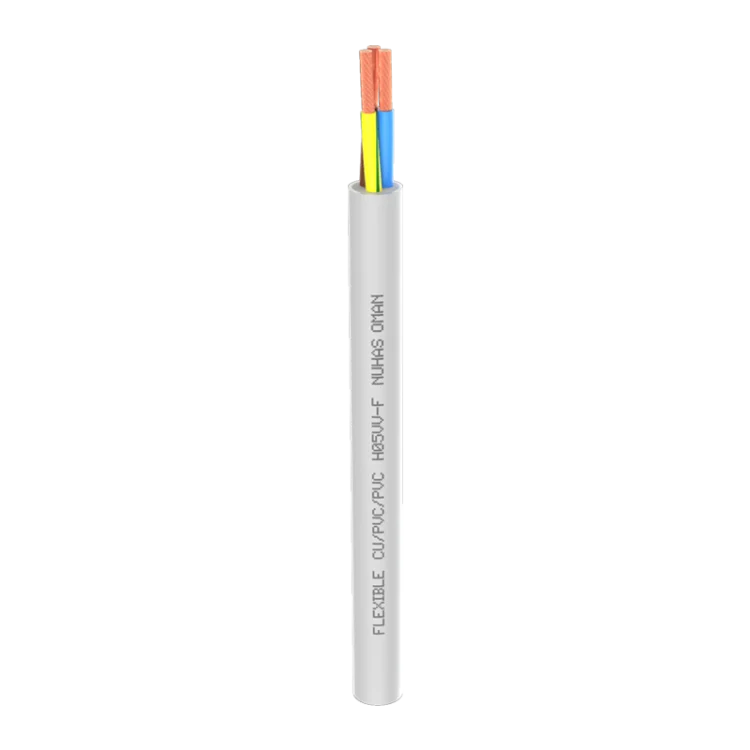

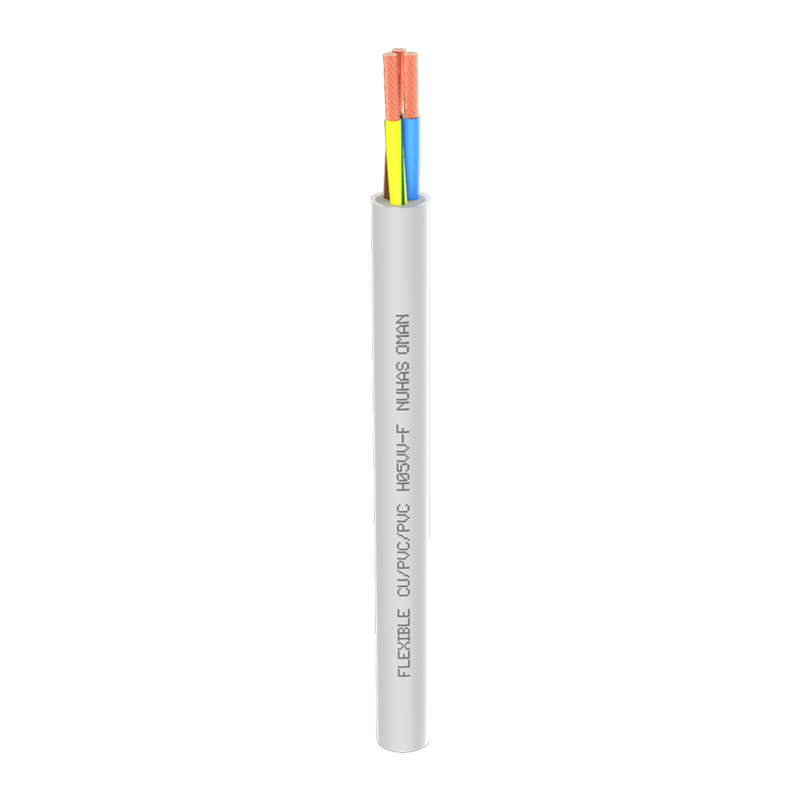

- H05VV‐F
- H05V2V2‐F
Rated Voltage
- 300/500 V
Product Range
- 2 core – 0.5 to 10 mm2
- 3 core – 0.5 to 10 mm2
- 4 core – 0.5 to 10 mm2
- 5 core – 0.5 to 10 mm2
