Instrumentation Cables
Instrumentation cables are used for carrying data signals from critical instruments used for measurements. Voltage range includes 300/500 V. These cables are manufactured to BS EN 50288-7.
*PVC insulated cables can be manufactured on request.

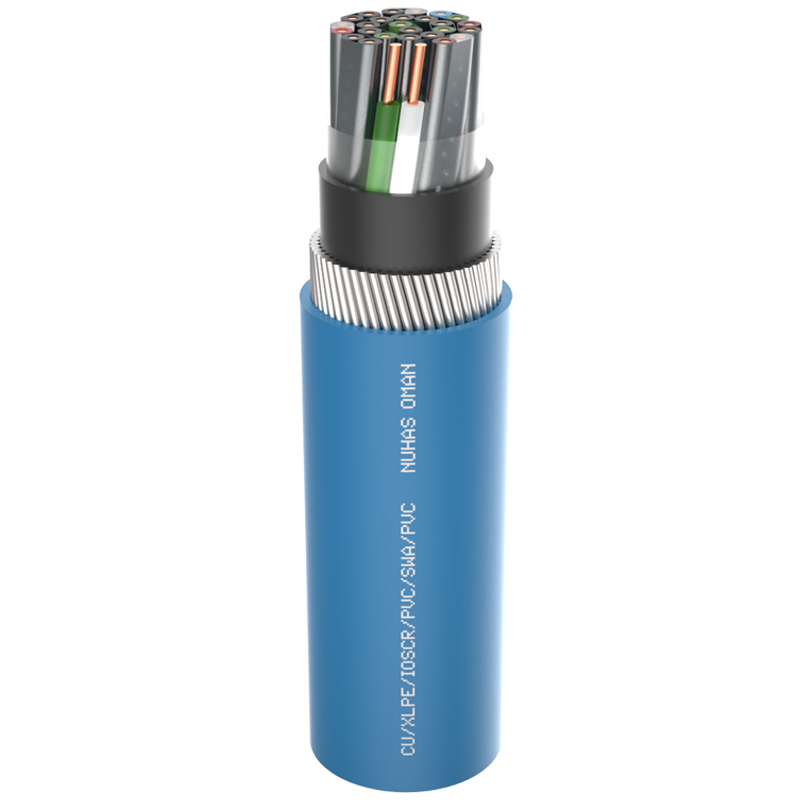

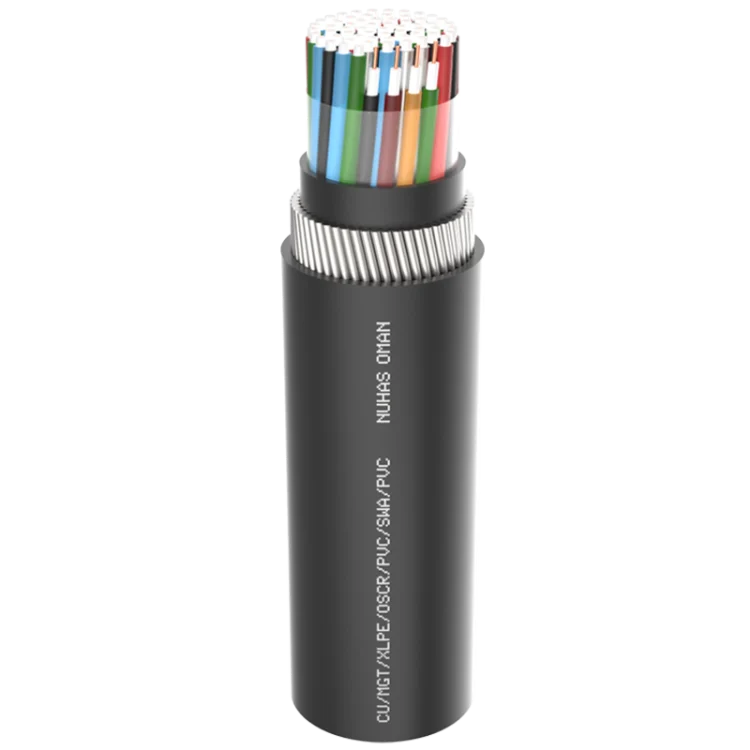

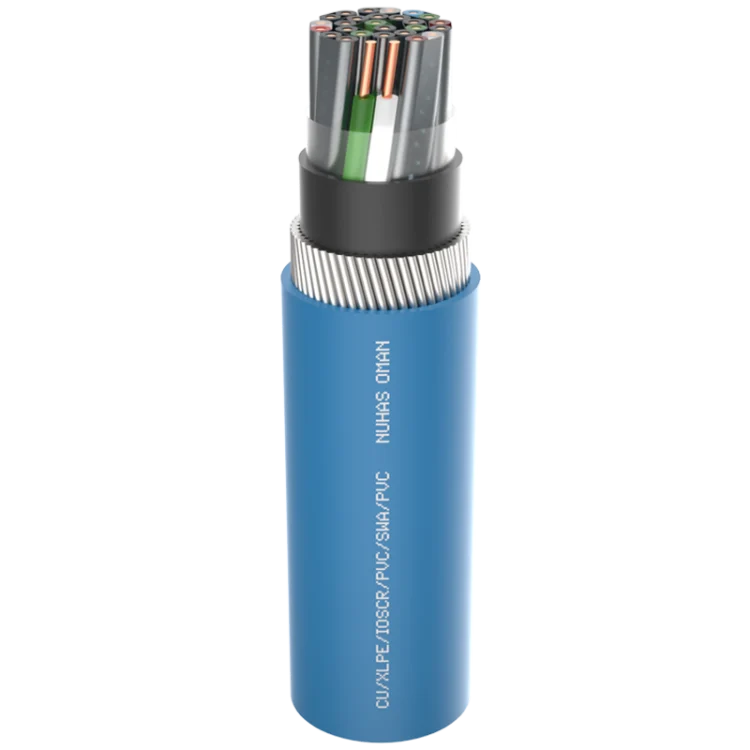

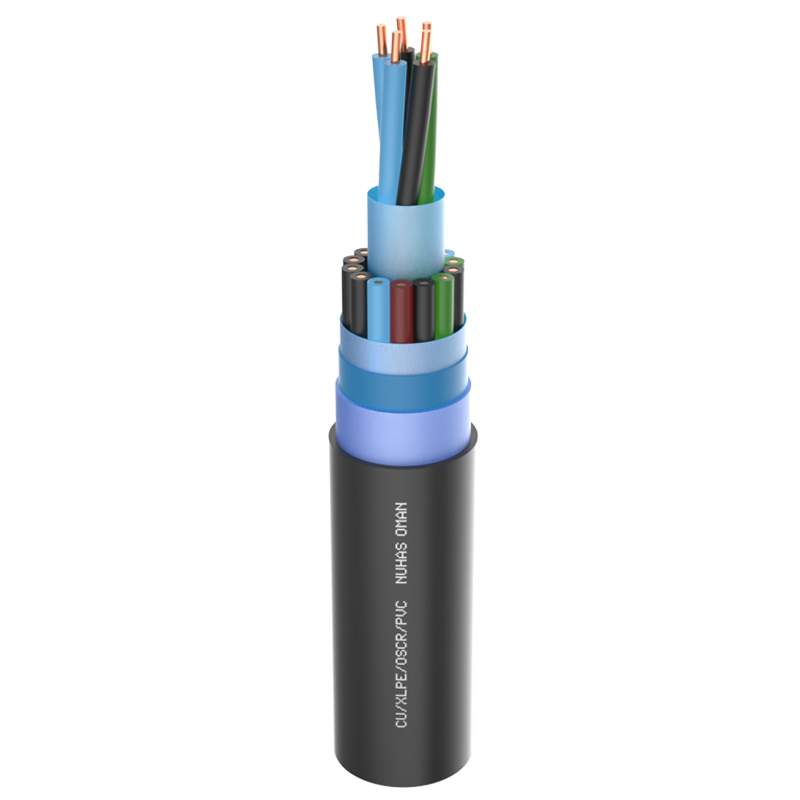

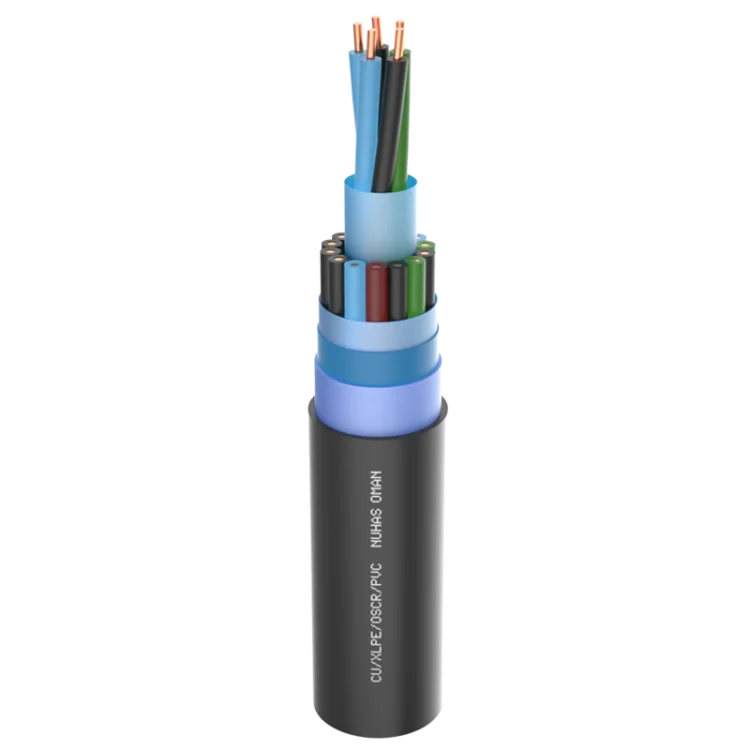

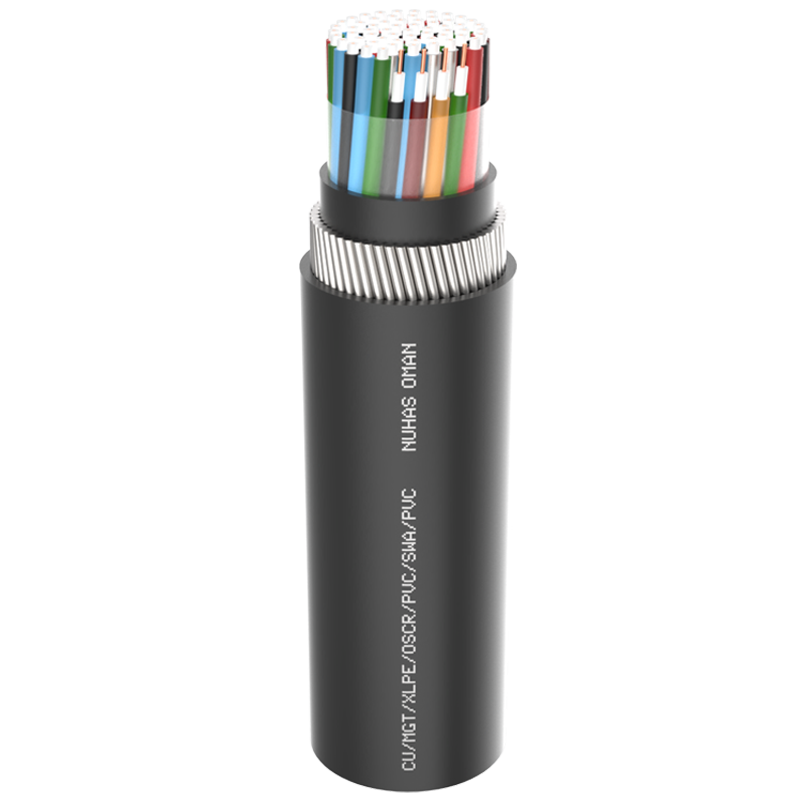

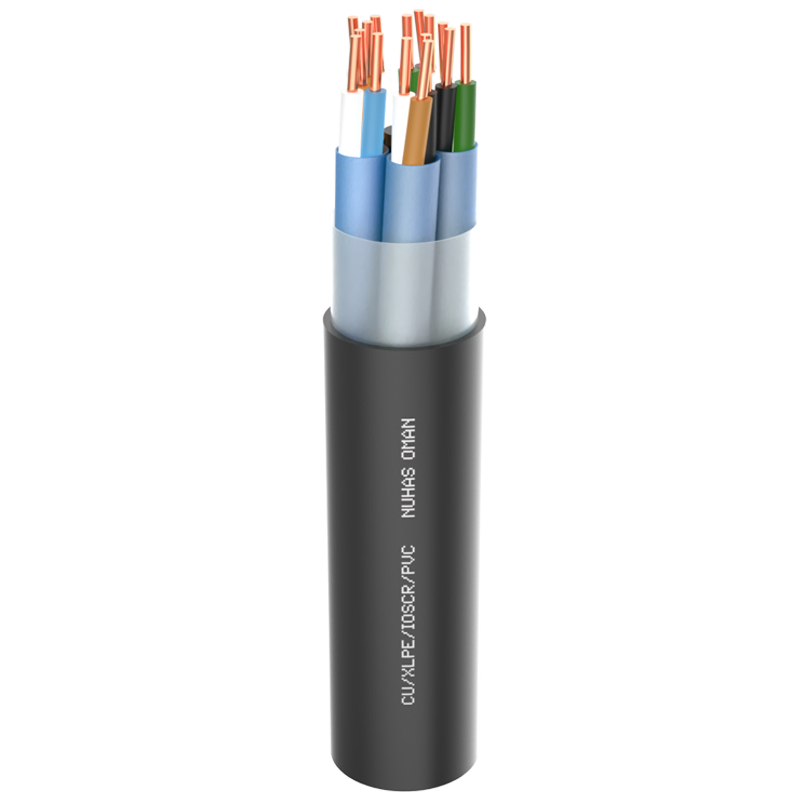

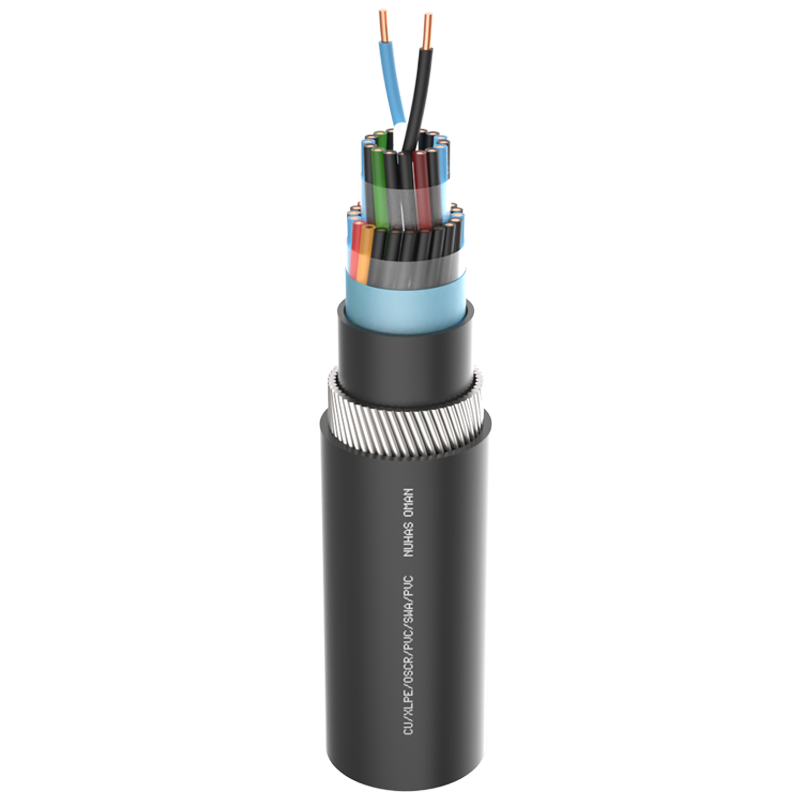

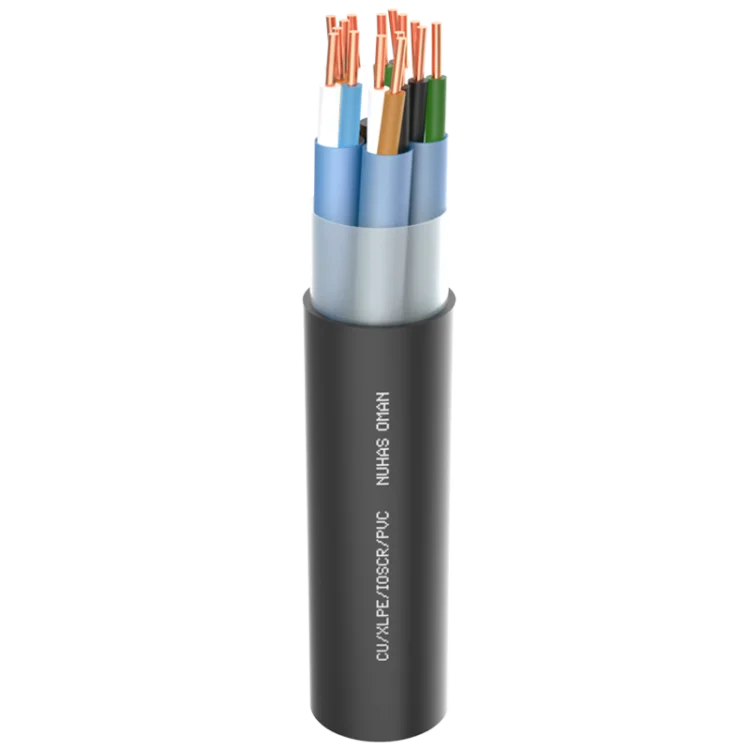

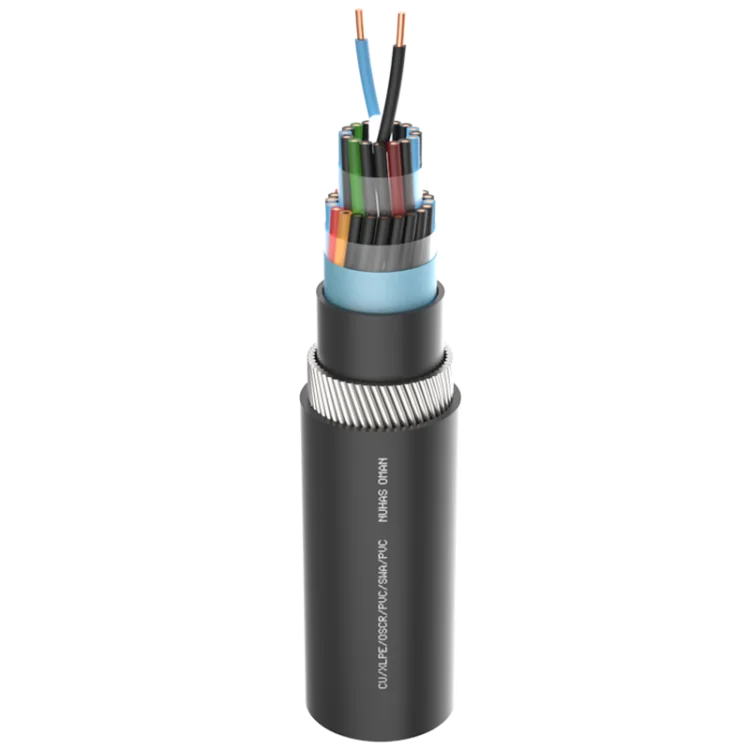

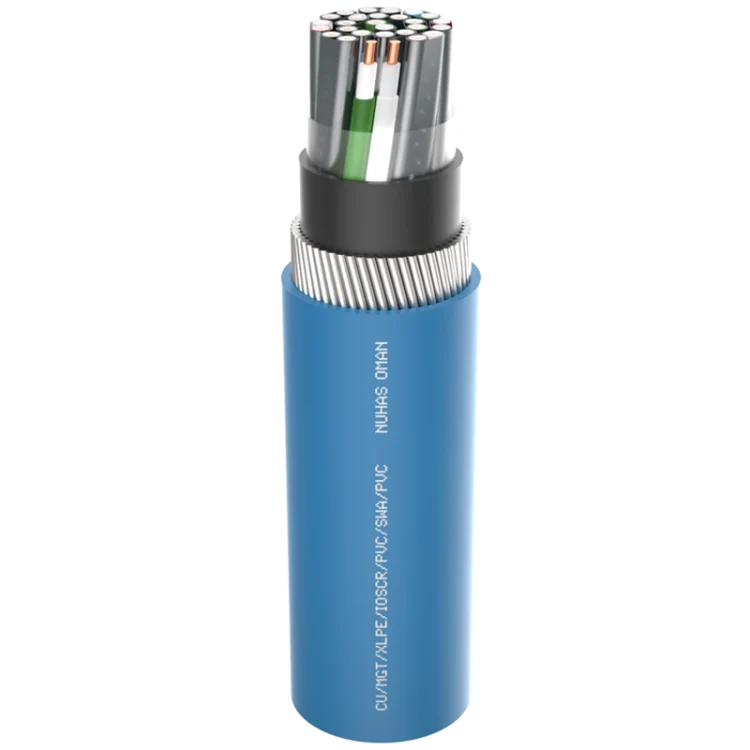

Construction
- Annealed Plain Copper Conductor
- XLPE Insulation*
- Individual or Overall Screened with Drain wire
- Armoured or Unarmoured
- PVC / LSF Outer Sheath
Applicable Standards
- BS EN 50288‐7 (previously BS 5308‐1 & 2)
Operating Temperature
- 90°C
Properties
- Flame retardant to IEC 60332-1
Type Tested By
- BSI
Application
- For instrumentation purpose to reduce the cross‐talk and to protect signals from outside electromagnetic, electrostatic & radio frequency interference.
Rated Voltage
- 300/500 V
Product Range
- 1 core to 48 cores – 0.5 to 2.5 mm2
- 1 pair to 32 pairs – 0.5 to 2.5 mm2
- 1 triad to 20 triads – 0.5 to 2.5 mm2
- 1 triad to 20 triads – 0.5 to 2.5 mm2
