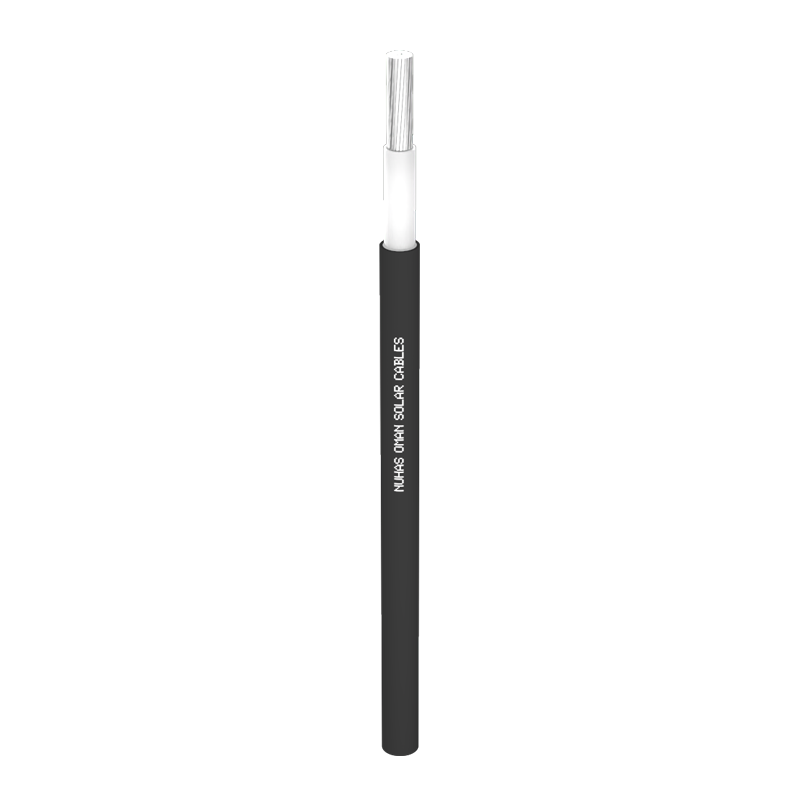

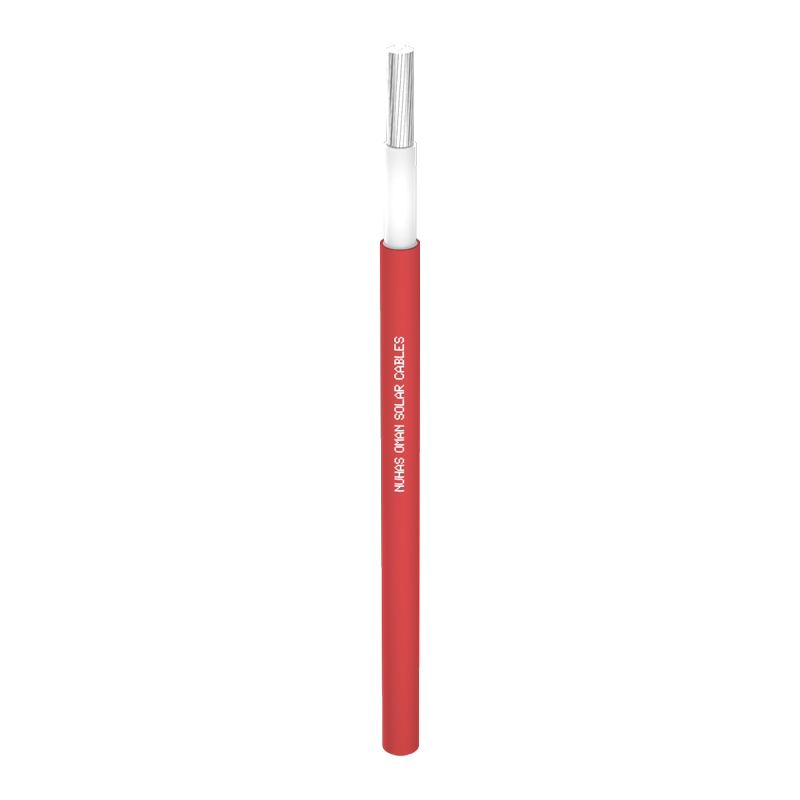

Solar (Photovoltaic) Cables
Nuhas Oman low smoke halogen free, flexible solar cables are used in photovoltaic system in particular for installation at the direct current (d.c) side and permanent outdoor use for many years under variable extreme climate conditions.
Construction
- Annealed Tinned Copper Conductor
- Cross-linked Halogen free Insulation
- Cross-linked Halogen free Sheath
Applicable Standards
- BS EN 50618
Operating Temperature
- Continuous operating temp 90° C
- Max 120° C for 20000 h
Properties
- Flame retardant to BS EN 60332‐1-2
- Low smoke emission to BS EN 61034
- Zero Emission of Halogen acid gas
- Resistant to UV
- Thermal endurance test for 20000 h
Type Tested By
- DEKRA
Type Details
- H1Z2Z2-K
Rated Voltage
- 1500 V dc & 1.0/1.0 kV ac
Product Range
- 1 core – 1.5 to 240 mm2
