Medium voltage cables



Medium voltage cables are large power carriers from electric stations to transmit & distribute further to substations in residential areas. Also used in industries, commercial complexes with high energy requirements. Voltage range includes from 3.6/6 kV to 19/33 kV. These cables are manufactured to international standards including BS, IEC and other national & utility standards.

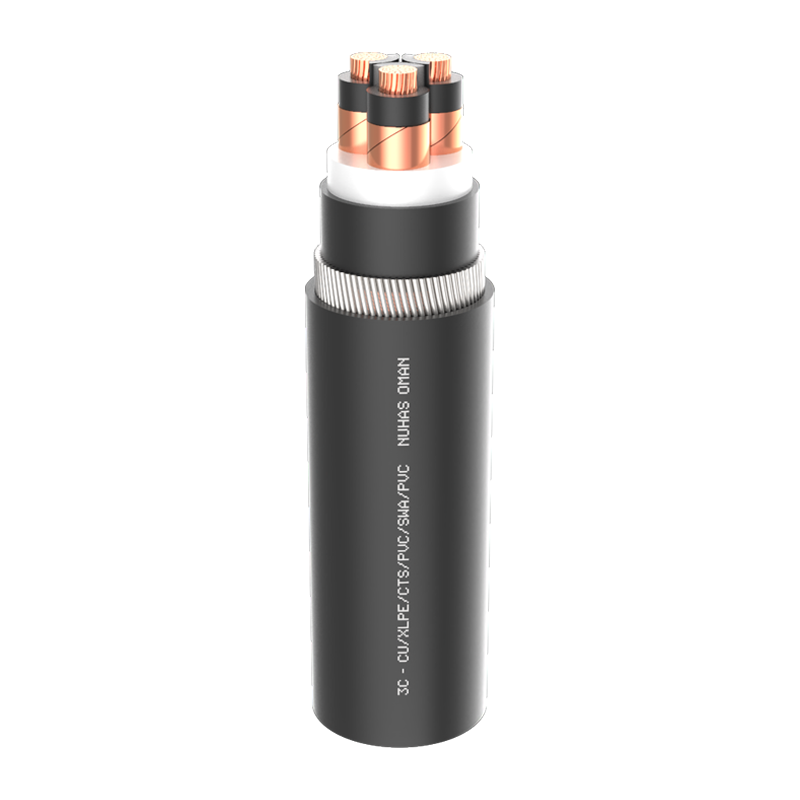

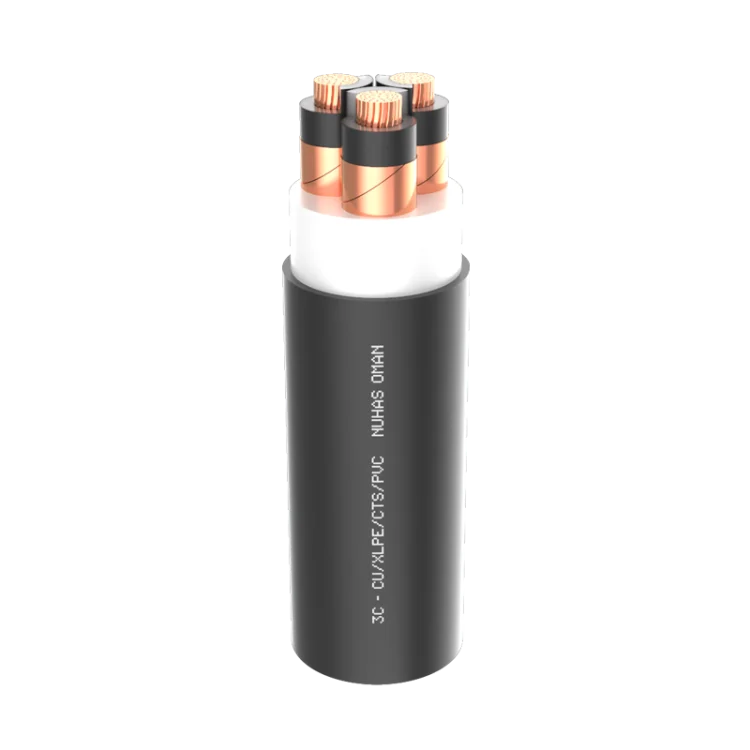

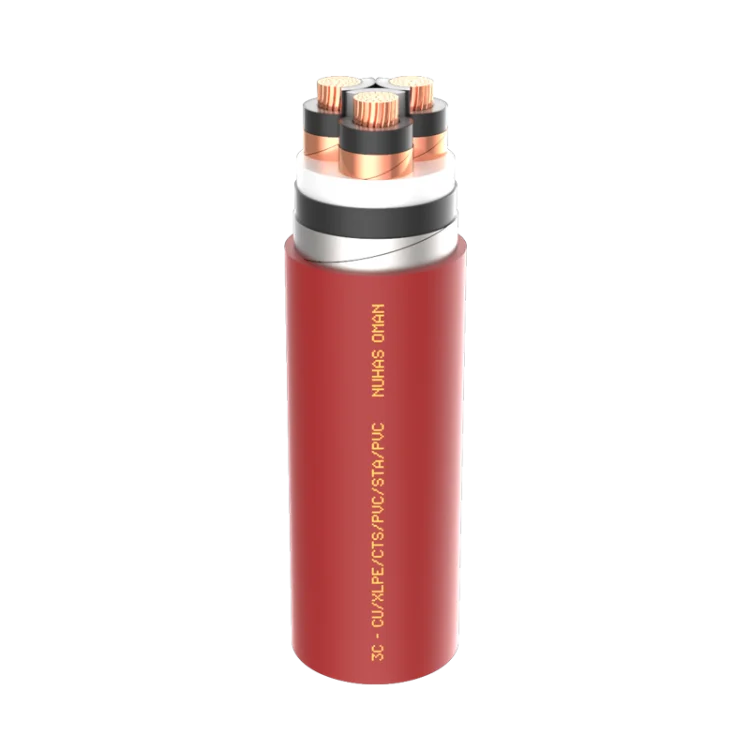

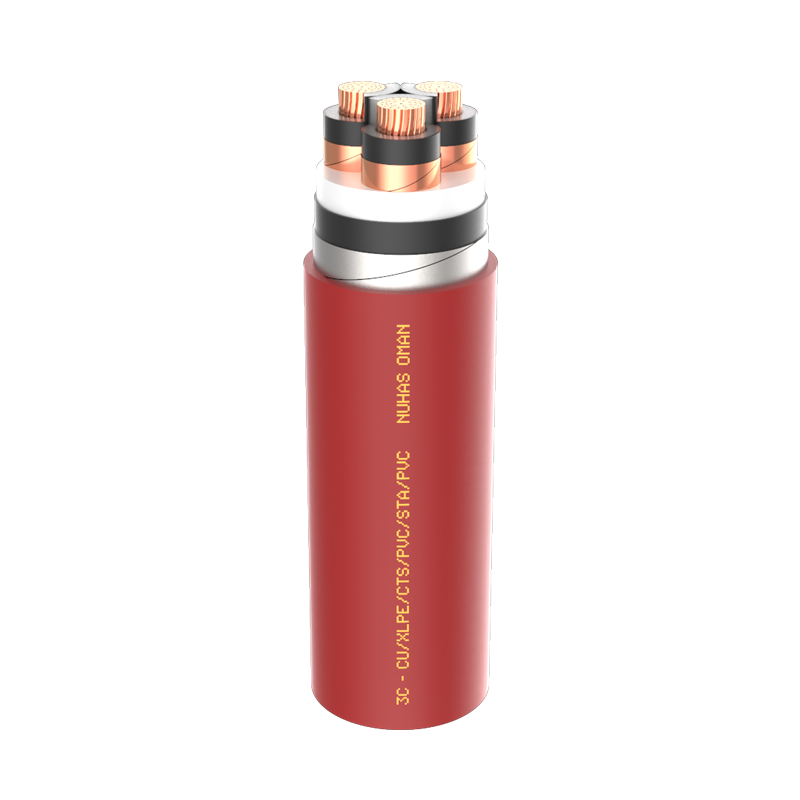

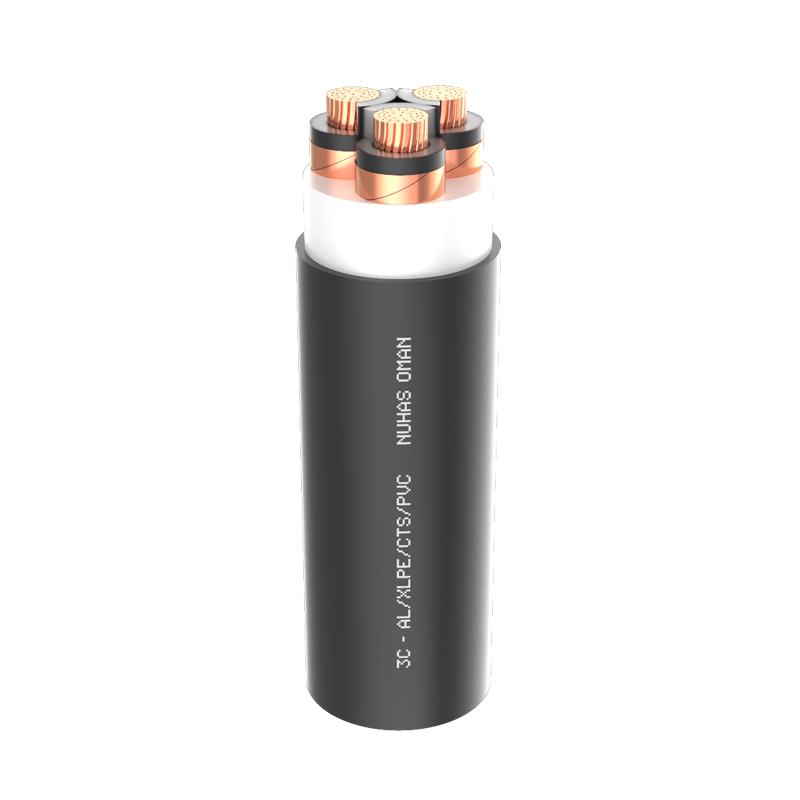

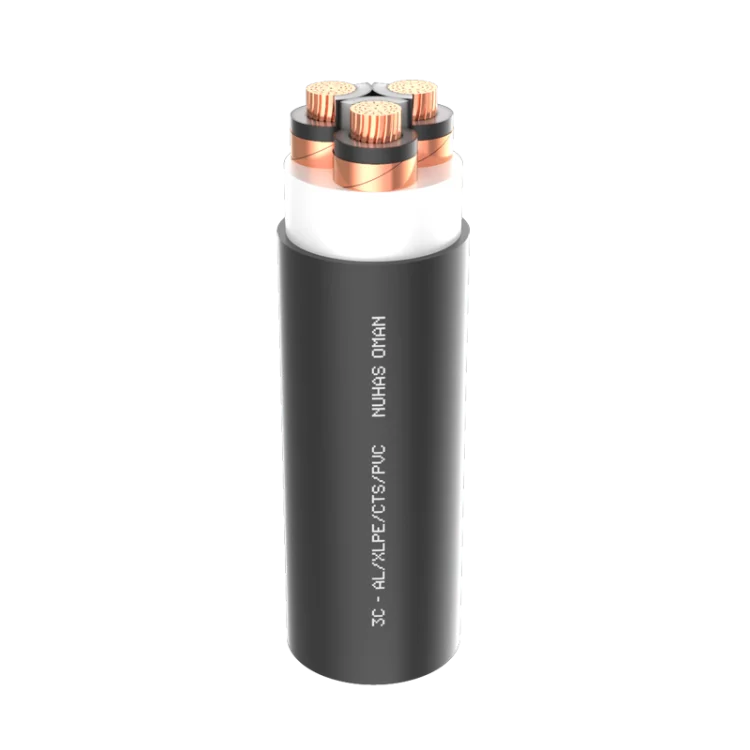

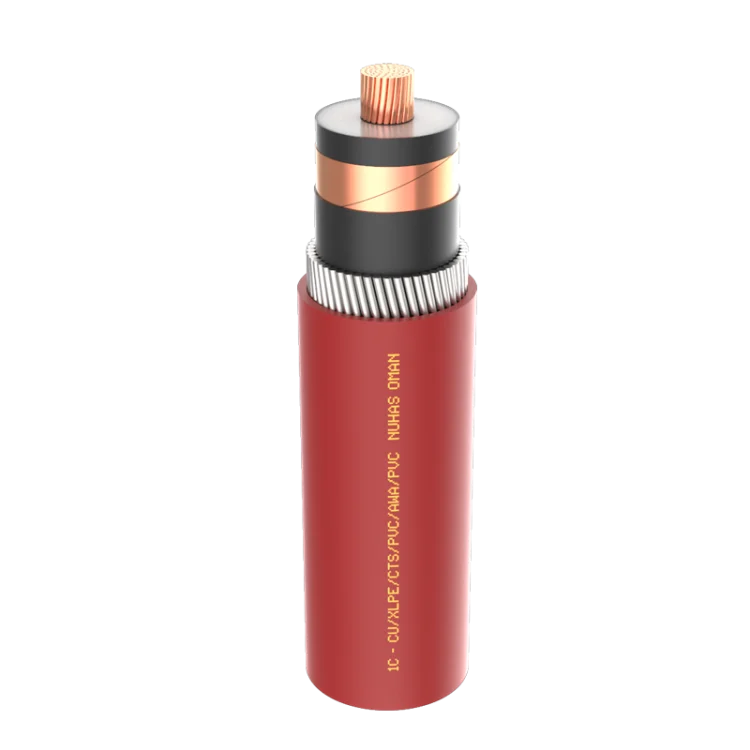

Construction

  • Annealed Plain Copper Conductor
  • XLPE Insulation
  • Copper Tape/Wire Screen
  • Armoured or Unarmoured
  • PVC Outer Sheath*

Applicable Standards

  • IEC 60502‐2 / BS 6622
  • Utility standards OES‐2, ADWEA, DEWA, FEWA, SEC, KAHRAMAA, MEW Kuwait, EDD Bahrain

Rated Voltage

  • 3.6/6 (7.2) kV or 3.8/6.6 (7.2) kV
  • 6/10 (12) kV or 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV or 12.7/22 (24) kV
  • 18/30 (36) kV or 19/33 (36) kV

Properties

  • Flame retardant to IEC 60332‐1

Type Tested By

– KEMA

Application

For underground/duct installation in industrial areas, electric power stations & similar applications for carrying out large electric power

Product Range

  • 1 core – 50 to 1000 mm2
  • 3 core – 16 to 400 mm2

Operating/Short Circuit Temperature

– 90°C / 250°C

*Special PVC outer sheaths can be provided on request to incorporate below properties,

  • Stringent Flame Retardant test IEC 60332‐3‐Cat.A/Cat.B/Cat.C or
  • Low smoke emission or low toxicity
  • Resistant to Anti‐termite & rodents or Oil or Hydrocarbons.
